Soundbox AR series
Movable silence booth
Unbeatable quality yet stylish office pods
Soundbox AR series
Movable silence booth
Unbeatable quality yet stylish office pods
1dB
Sound insulation 23dB
(Tolerance ±3dB)
1S
Reverberation Time 0.25S
(Tolerance ±0.1S)
1%
Sound Clarity 99%
(D50)
A quiet work space
A quiet work space

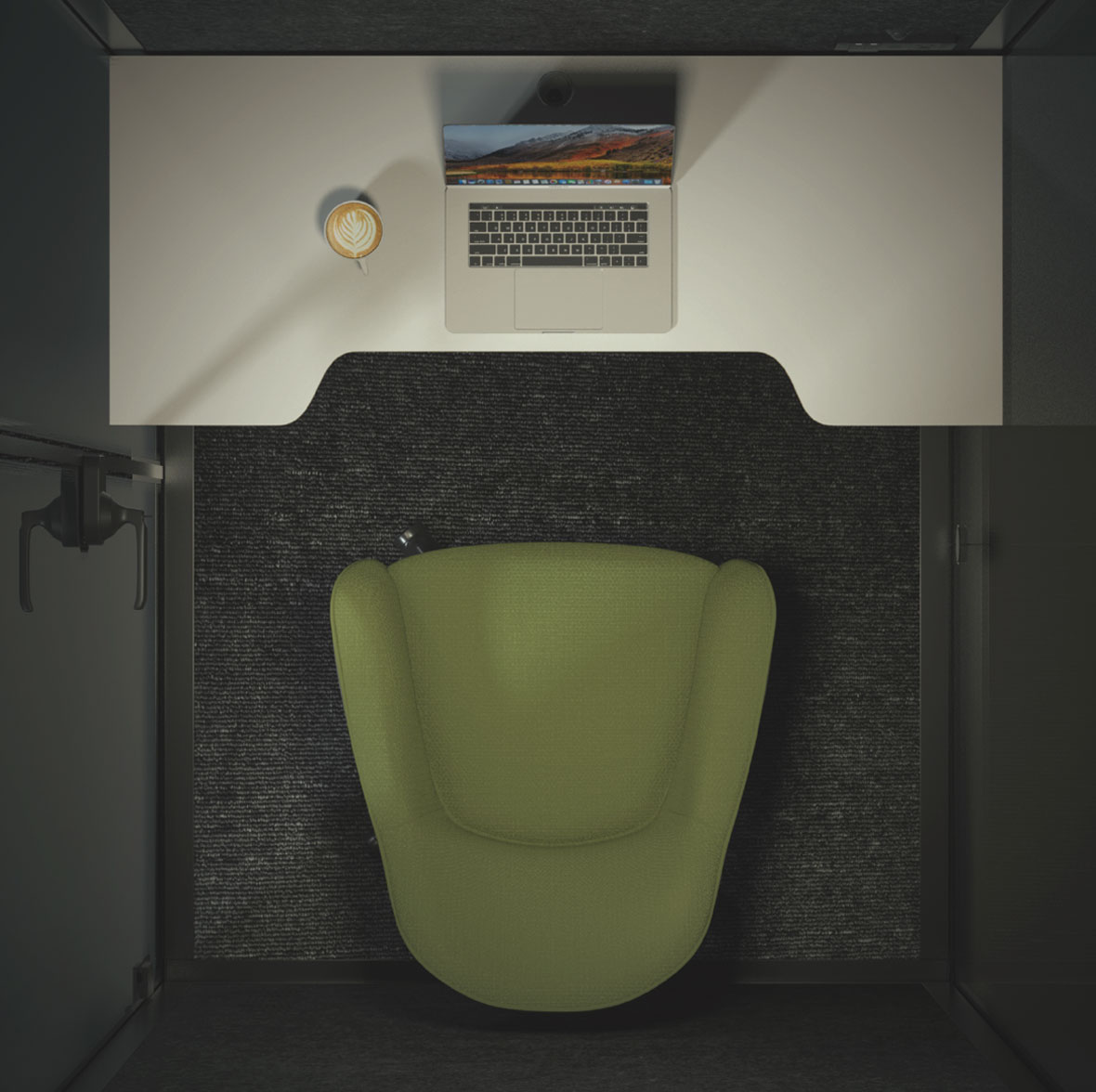

A private office space

Giving you a private space just for you to brainstorm.

A private office space

Giving you a private space just for you to brainstorm.

Soundproof

In our designing process, we fully utilize acoustic simulation software such as INSUL MARSHALL ACOUSTIC to iterate and obtain optimal acoustic performance.

Our booth is consistent with the standard of environmental rating Design value: Rw+Ctr 25 db (+5 db) and RT0.25 s (+0.1 s).

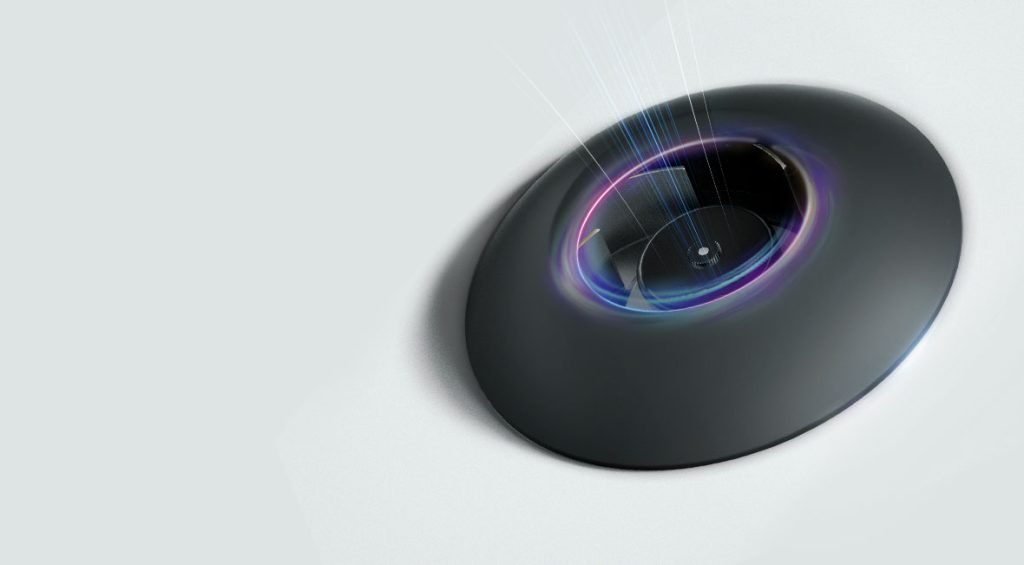

Ventilation

Low noise air ventilation system with maze-like internal layout to ensure necessary air circulation in three minutes, while preserving soundproofing attributes of the booth.

Ventilation

Low noise air ventilation system with maze-like internal layout to ensure necessary air circulation in three minutes, while preserving soundproofing attributes of the booth.

Lighting

Equipped with 4000 K daylight color temperature LED lighting system (150 LX), it would satisfy the needs of normal activities. In the event of additional power requirements, a backup power supply is readily installed inside the booth.

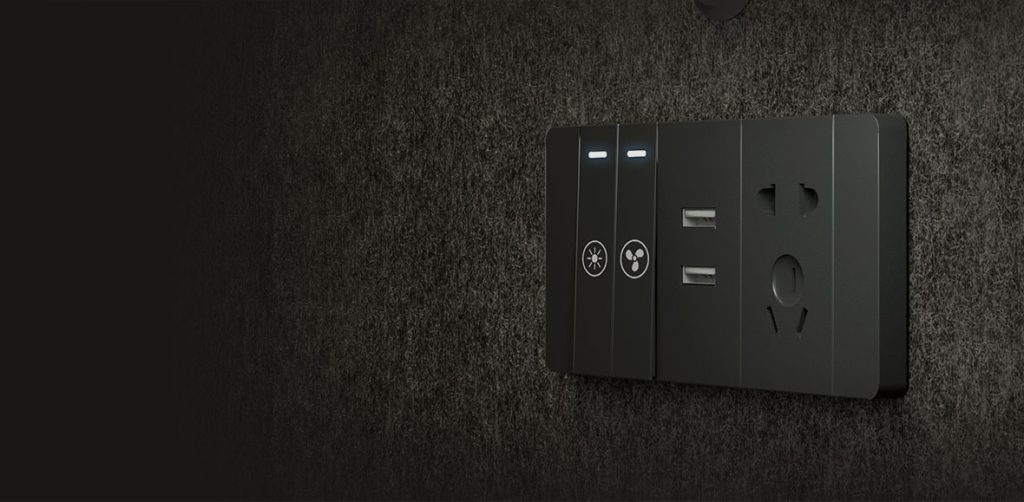

Power

Our booth is equipped with 12 V-USB power supply and power rated for 100-220V/50HZ, complying with common equipment requirements.

Power

Our booth is equipped with 12 V-USB power supply and power rated for 100-220V/50HZ, complying with common equipment requirements.

Acoustic Interior
Our booth has an effective area of 60% covered Polyester Fiber sound absorbing material.
Optional furniture
We can recommend what type of aesthetic and acoustic furniture is optimal for your Silence Booth.
Motion Sensor
Soundbox Silence Booth is equipped with motion sensor to control the lighting and ventilation system.
External cable hole
An external opening allows cables to easily pass into the booth. The opening may be closed when not in use.
Fastening Assemble

Our design philosophy has always emphasized on simplicity and minimalistic approach.
Hence our whole model only utilizes 90-degree fasteners.

4 different sizes to meet your needs

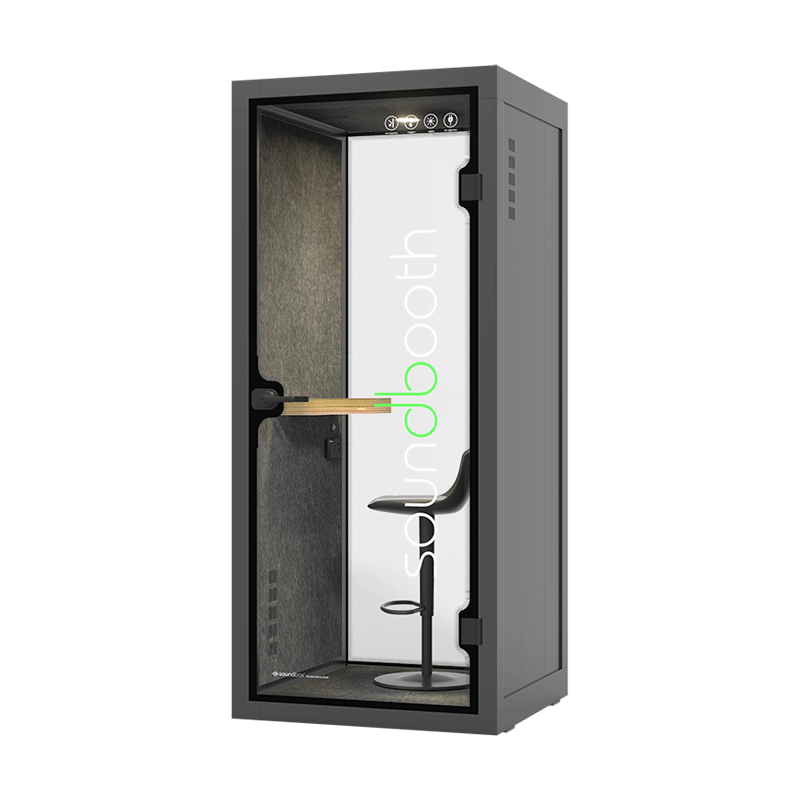

Model:
S

Exterior size:
D936 x W1000 x H2300mm
(36.85″ x 39.37″ x 90.55″)

Inner size:
D900 x W840 x H2140
(35.43″ x 33.07″ x 84.25″)

Capacity:
For one person

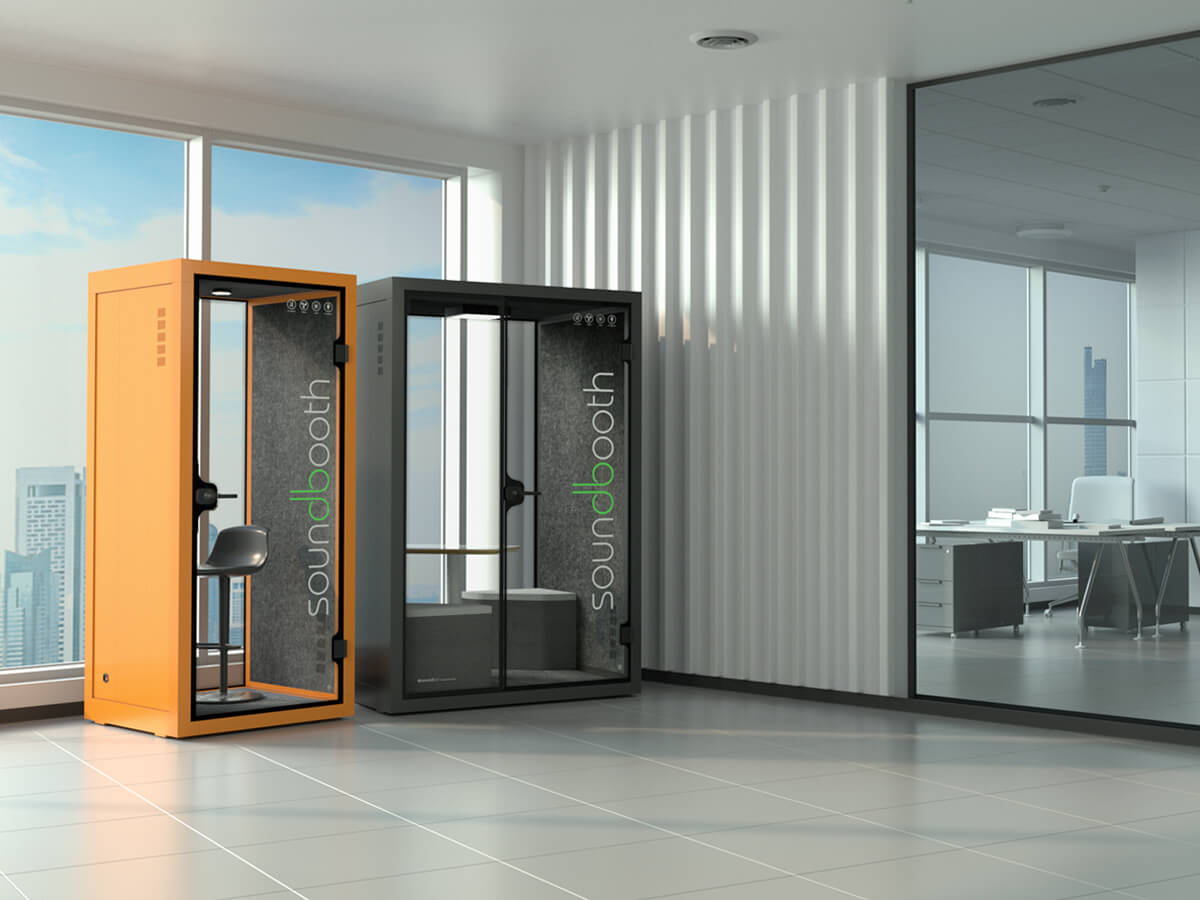

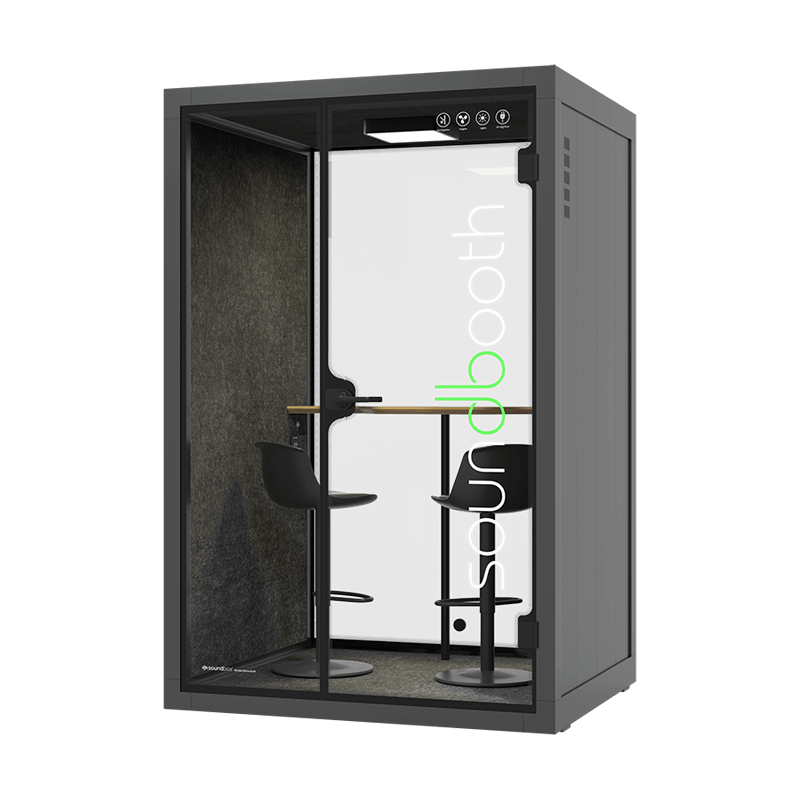

Model:
M

Exterior size:
D1236 x W1500 x H2300mm
(48.66″ x 59.06″ x 90.55″)

Inner size:
D1200 x W1340 x H2140mm
(47.24″ x 52.76″ x 84.25″)

Capacity:
For two person

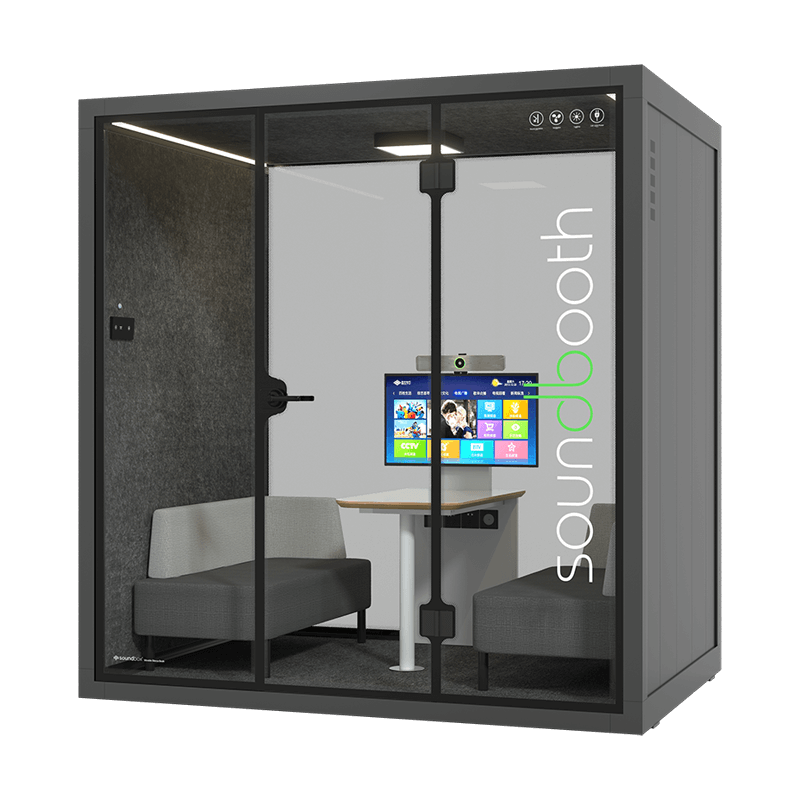

Model:
L

Exterior size:
D1536 x W2200 x H2300mm
(60.47″ x 86.61″ x 90.55″)

Inner size:
D1500 x W2040 x H2140mm
(59.06″ x 80.31″ x 84.25″)

Capacity:
For four person

Model:
XL

Exterior size:
D2136 x W2200 x H2300mm
(84.09″ x 86.61″ x 90.55″)

Inner size:
D2100 x W2040 x H2140mm
(82.68″ x 80.31″ x 84.25″)

Capacity:
For six person
