Movable Silence Booth

A small space, satisfy your needs for creative design space.

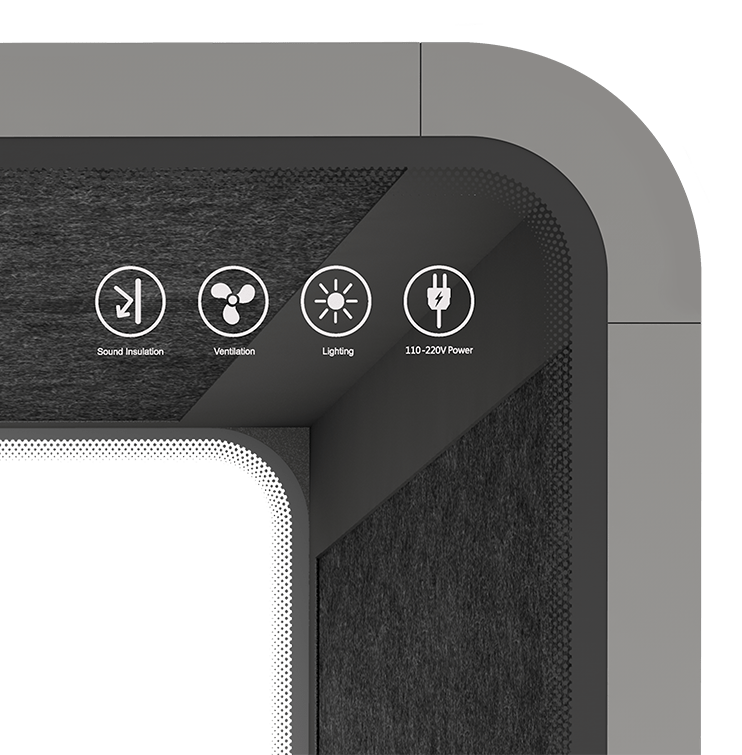

Sound Insulation

In our designing process, we fully utilize acoustic simulation software such as INSUL MARSHALL ACOUSTIC to iterate and obtain optimal acoustic performance.

Our booth is consistent with the standard of environmental rating Design value: Rw+Ctr 30 db (+5 db) and RT0.75 s (+0.1 s).

Ventilation

Low noise air ventilation system with maze-like internal layout to ensure necessary air circulation in three minutes, while preserving soundproofing attributes of the booth.

Lighting

Equipped with 4000 K daylight color temperature LED lighting system (150 LX), it would satisfy the needs of normal activities. In the event of additional power requirements, a backup power supply is readily installed inside the booth.

Power

Our booth is equipped with 12 V-USB power supply and power rated for 100-220V/50HZ, complying with common equipment requirements.

Acoustic Interior

Our booth has an effective area of 60% covered Polyester Fiber sound absorbing material.

Sound Insulation Tempered Glass

With multiple laboratory tested results, conventional glass is not able to fulfill our needs to achieve our desired noise reduction performance, we had tested and chosen to use double-glazing glasses.

Modular Felt

Based on non-vulcanized butyl rubber, covered by adhesive PE staple fiber weaving surface and attached to contact-type overhead cushion, the modular felt is moisture-proof, anti-mildew, easy to clean and easy to maintain. Our material selection combined with design tweak, we have successfully to find the best ratio for sound absorption, noise and vibration insulation.

null

null

<span style='font-size: 12pt;'>External Cable Hole</span>

Anti-Wear Exterior

The surface of cabin insulation panel is covered with Korean-made nanometer PP facing, which has high resistance to friction pollution, ultraviolet rays, fire and moisture.

External Cable Hole

We provide a cable hole to the exterior in the event of data/power transfer is needed e. G. Recording, live, sound-controlled and interpretation scenes. The hole can be shut off when it is not needed in order to avoid sound flanking.

Damping Pad

Our booth bottom panel is equipped with our own damper block in order to provide better securities to vibration and structure-borne noise.

Fastening Assemble

Our design philosophy has always emphasized on simplicity and minimalistic approach.
Hence our whole model only utilizes 90-degree fasteners.

A small space
compatible more than 10 application scenarios.

Office

The office layout in most companies is designed with open partitions at present. It is less constraint in comparison with traditional offices. However, personal privacy needs to be sacrificed in an open design office.

For examples, your conversation with your client on phone could be easily overheard by your colleagues even they do not intend to. Furthermore, your productivity will be decreased in such noisy environment.

Image that you are preparing an important presentation for your clients and boss, and your colleague is on a phone call next to you.

Soundbox silence booth is a product to offer a relatively quiet space in an open design office, it is easy to assemble, and it could be installed in any locations in office. Soundbox moveable silent booth could be used for many purposes such as private meetings and phone calls.

Education

Music education is not just one of a school curriculums, off-campus chain training institutions are full of vitality. However, we have been ignoring the importance of acoustic in such spaces, it indeed has a direct impact on students ‘perception of tone and intonation. Other major space defects are students’ mutual interference and noise disturbance to resident.

Re-decorate the space will make all previous investment in waste. Thus, Soundbox movable silent booth is designed to solve all these problems.

Function

Soundbox movable silent booth is an ideal space where people can bring their full attention to day-to-day tasks with less interruption. Just because having a silent booth, it does not mean to gain a professional audio studio.

Soundbox movable silent booth provides a comfortable and neutral acoustic environment.

Residential

For a family with children, a dream house should be consists of a study room, a piano room, a leisure area, a meditation room and a gym and so on. A dream house ensures comfortable life with privacy for your children and yourself. However, this is expensive and not every family could be able to afford it.

Soundbox movable silent booth , compositing all these functions, provides you with extra modular room at home, actualising your dream life.

4 different sizes to meet your needs

Model:
S

Exterior size:
D936 x W1000 x H2300mm
(36.85″ x 39.37″ x 90.55″)

Inner size:
D900 x W840 x H2140mm
(35.43″ x 33.07″ x 84.25″)

Capacity:
For one person

LEARN MORE

Model:
M

Exterior size:
D1236 x W1500 x H2300mm
(48.66″ x 59.06″ x 90.55″)

Inner size:
D1200 x W1340 x H2140mm
(47.24″ x 52.76″ x 84.25″)

Capacity:
For two person

LEARN MORE

Model:
L

Exterior size:
D1536 x W2200 x H2300mm
(60.47″ x 86.61″ x 90.55″)

Inner size:
D1500 x W2040 x H2140mm
(59.06″ x 80.31″ x 84.25″)

Capacity:
For four person

LEARN MORE

Model:
XL

Exterior size:
D2136 x W2200 x H2300mm
(84.09″ x 86.61″ x 90.55″)

Inner size:
D2100 x W2040 x H2140mm
(82.68″ x 80.31″ x 84.25″)

Capacity:
For six person

LEARN MORE
