Step 1
Option 1
Bricks Wall

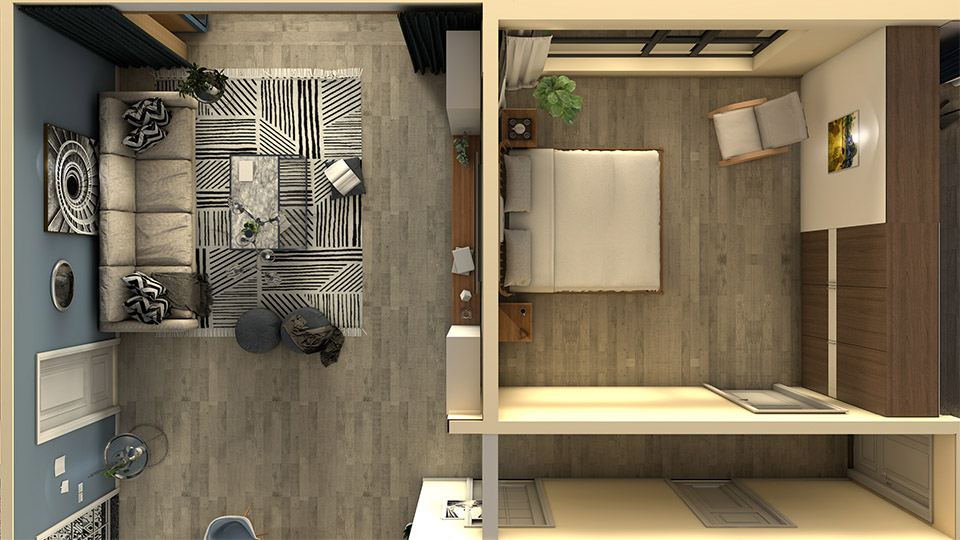

The living room is space for watching teleplay and football games. Piano room and study room is the soil for children growing.
Noisy in connected rooms interact, then people suffered. Enhanced wall sound insulation structure can well solve the residential noise problem, giving back enjoying life.
Installation Method
Step 2
Step 3
Step 4
Step 5
Step 6

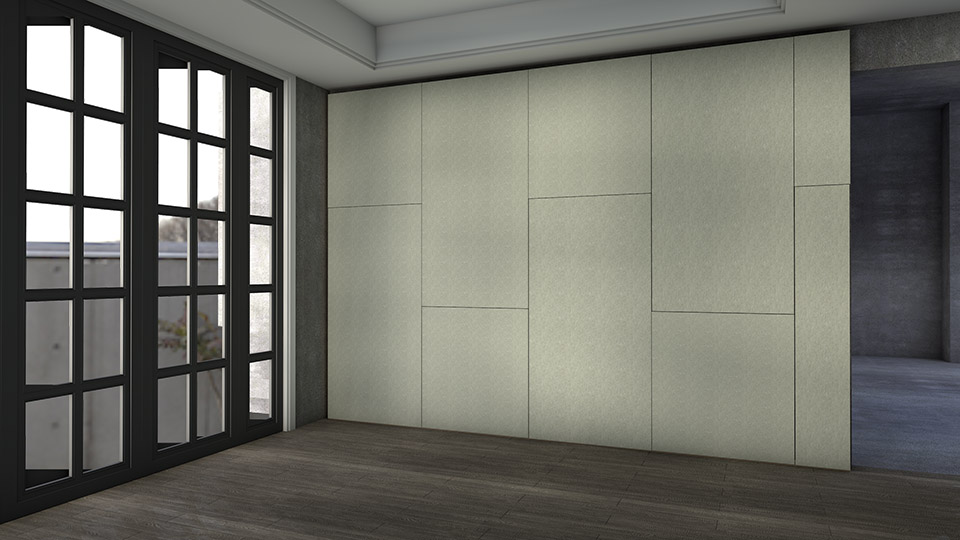

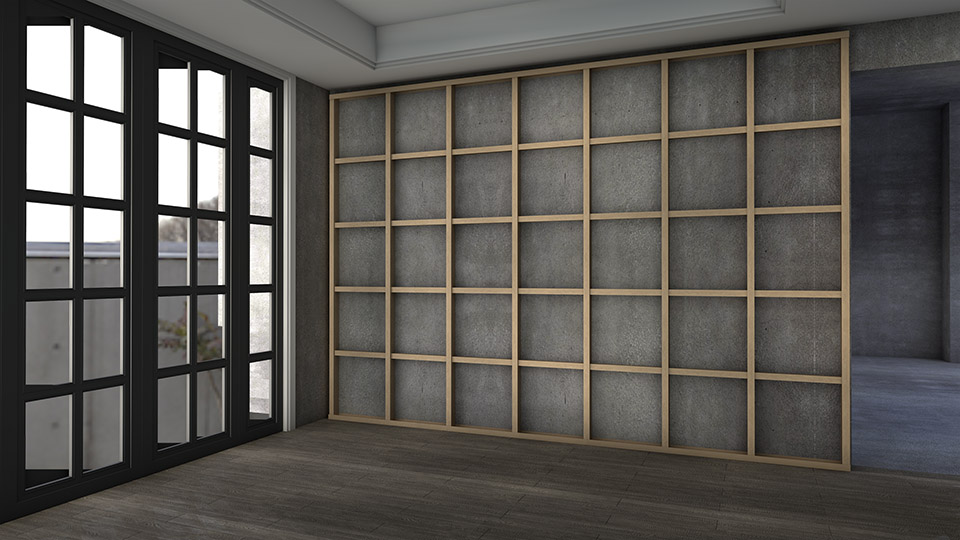

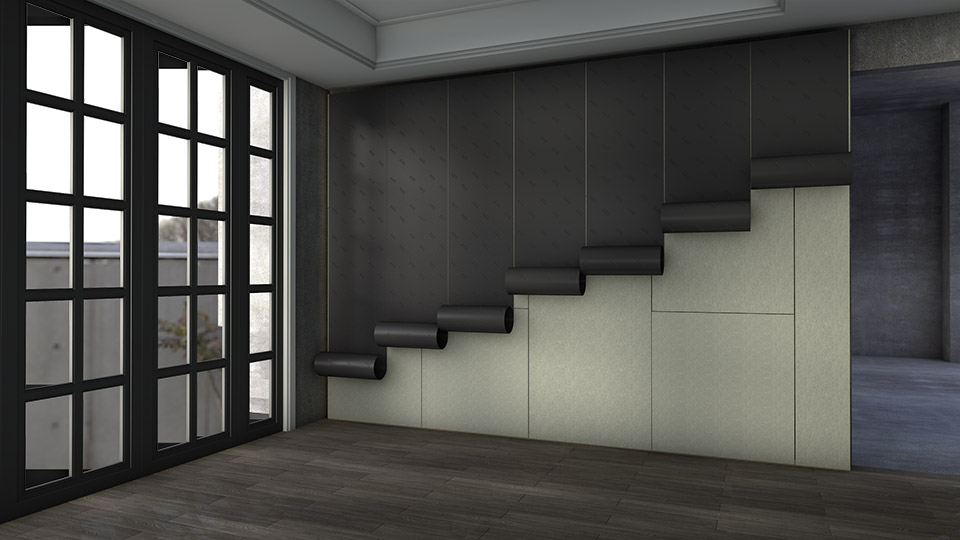

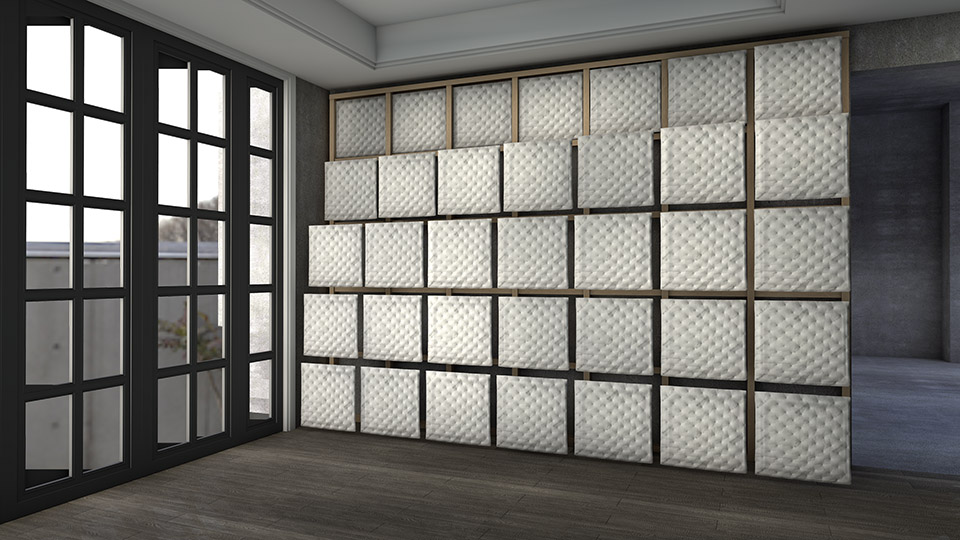

This ceiling sound Insulation structure, supported by standard steel keel system, will be less than 50 kg/m² 10-12 mm calcium silicate boards as the baseboard fixing to the steel keel system and the Soundbox Sound Insulation Felt fixing in between, then 10-12 mm gypsum board as the surface board, an effective sandwich structure is easily completed. Soundbox Sound-absorbing Wool filling the cavity; staggered installation of the calcium silicate boards and the gypsum boards Sealing the gaps properly with G600 Sound Insulation Glue.
Product Information
Product name:

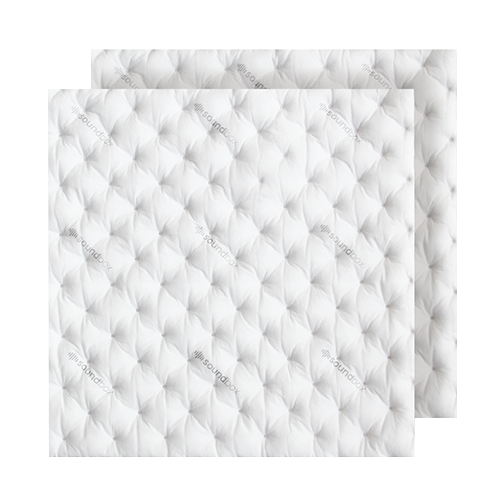

Byer Acoustic Fiber Wool
Model:
BE500
Specification:
W495 x H495 x T25mm
Weight:
500g/m²
The polyester fiber sound absorption board is based on the theory of perforated materials sound absorption. There are a large number of small interconnected holes inside the polyester fiber sound absorption board materials, and the sound wave can go deep inside the materials through these holes and turns the sound energy to be heat energy by means of friction with the materials. It is a type of perforated sound absorbing materials.
Product name:
High polymer sound insulation felt
Model:
F10 / F20 / F30
Specification:
F10 – W610 x L12000 x T1.0mm
F20 – W610 x L6000 x T2.0mm
F30 – W610 x L4000 x T3.0mm
Weight:
18kg/roll
High Polymer sound insulation felt is a high performance and high-quality polymer sound insulation felt with excellent transmission loss. It is made of environmental protection materials and renewable polymer containing no halogen, It does not contain formaldehyde, benzene, asbestos, radioactive substances and other constituents harmful to the human body and does not contain substances depleting ozone, thereby fully meeting the international volatile organic compound emission standards.
Product name:
Acoustic damping sealing glue
Model:
G600
Specification:
300 x Φ50mm
Weight:
600ml
The formula characteristics are effectively used for sealing the joints of the inorganic material boards and fixing the material, rubber and other materials with the vibration damping adhesive. There is no corrosion to the organic and inorganic materials, metal and rubber. The aging resistance is excellent, the adhesive property is good for multiple base materials, the moisture resistance and the high-low temperature adaptability are strong (use in the temperature range of -20°C to 100°C), and the performance is steady and reliable.
Option 2
Aluminium Structure Wall

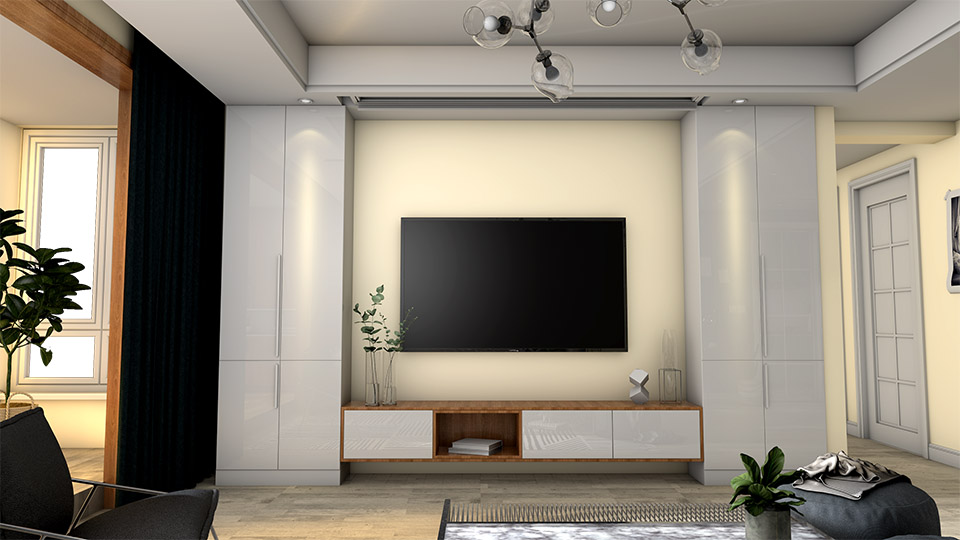

This wall structure saves a lot of space compared with traditional sound insulation structure, getting us out of the dilemma of space utilization and sound insulation.
Installation Method
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9

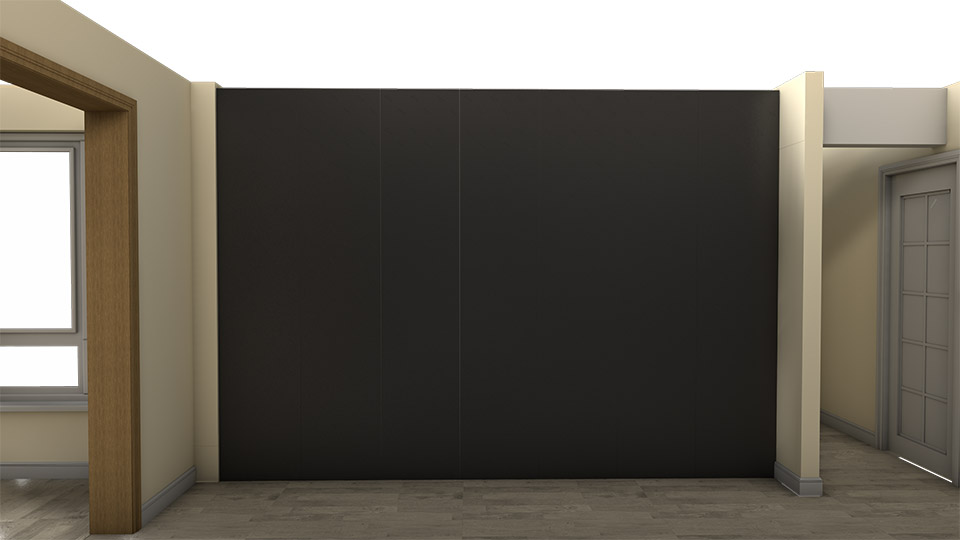

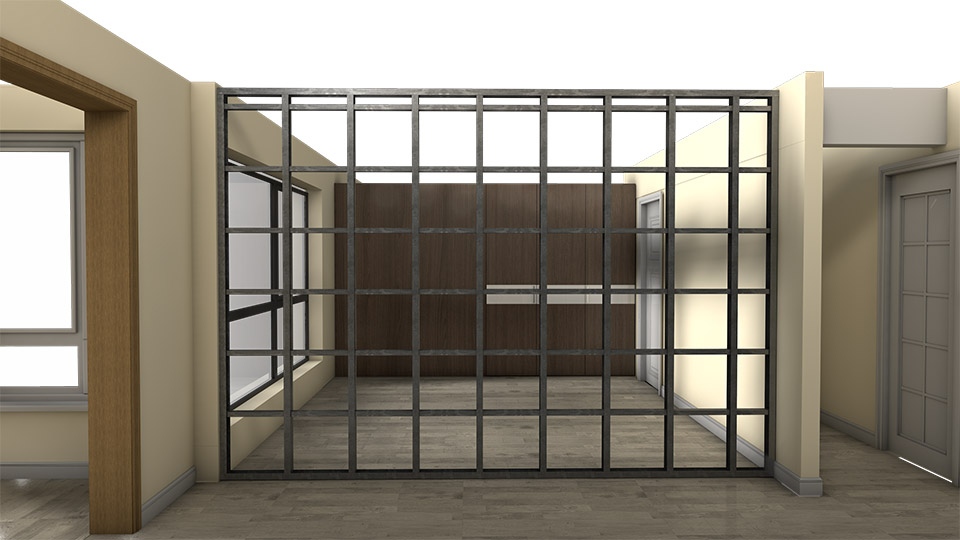

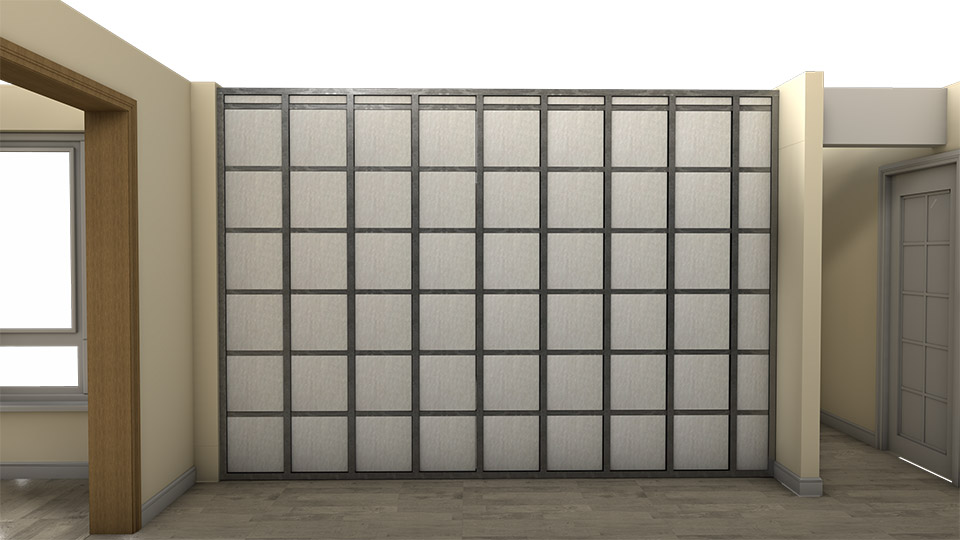

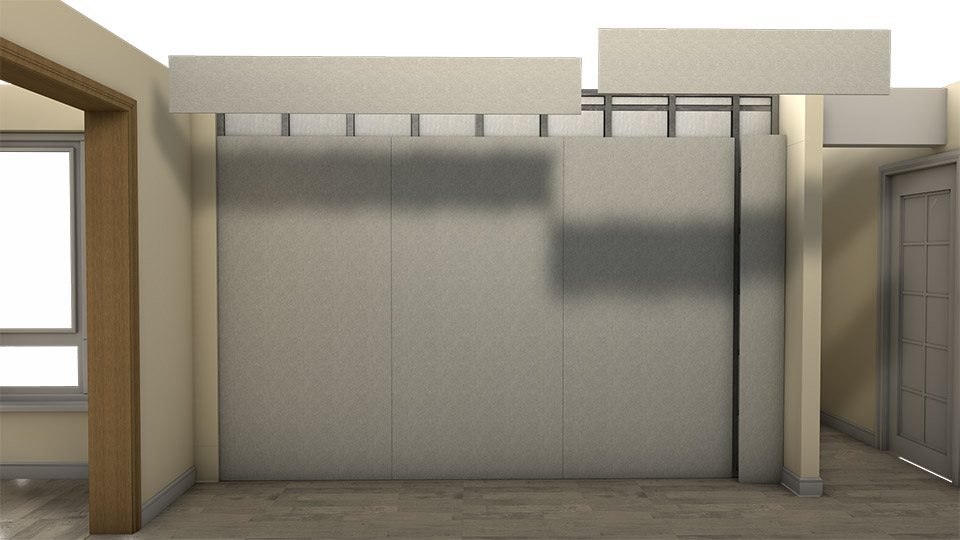

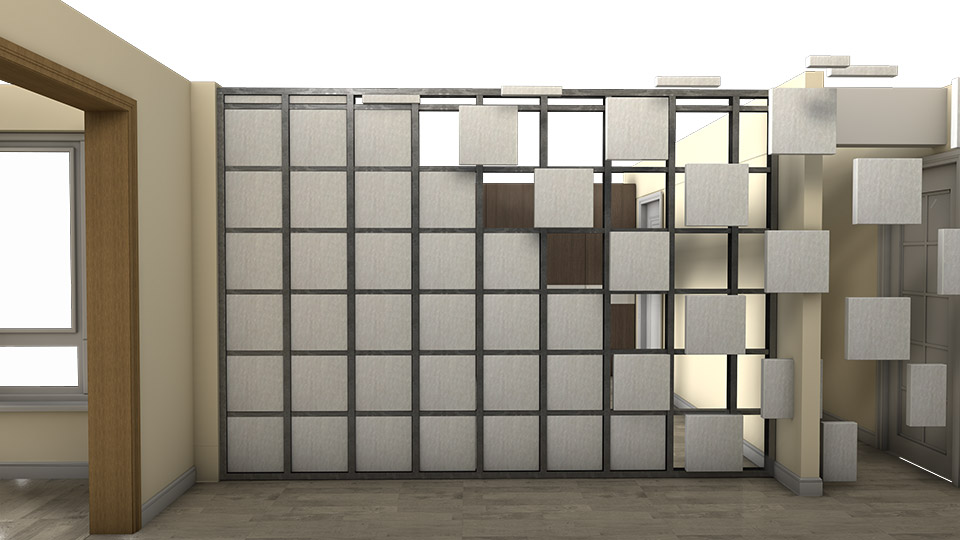

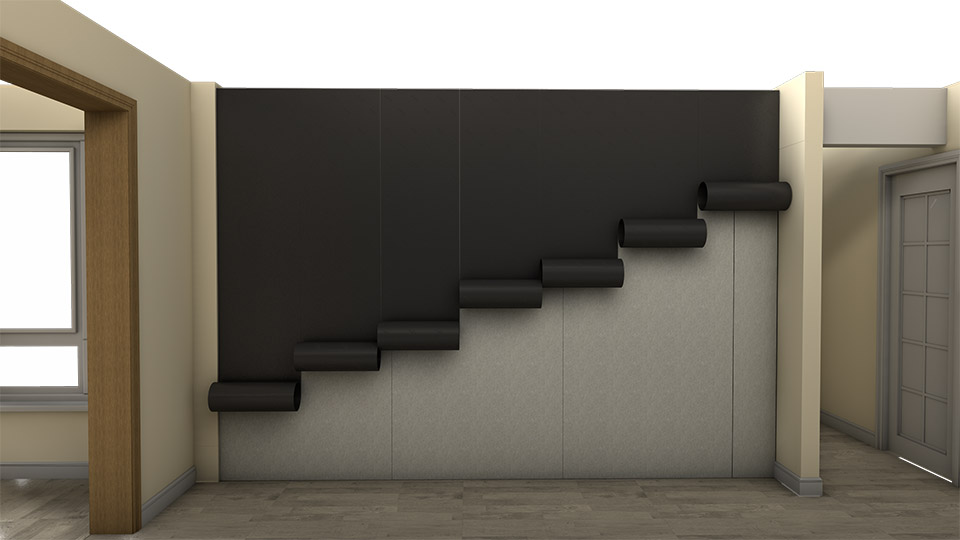

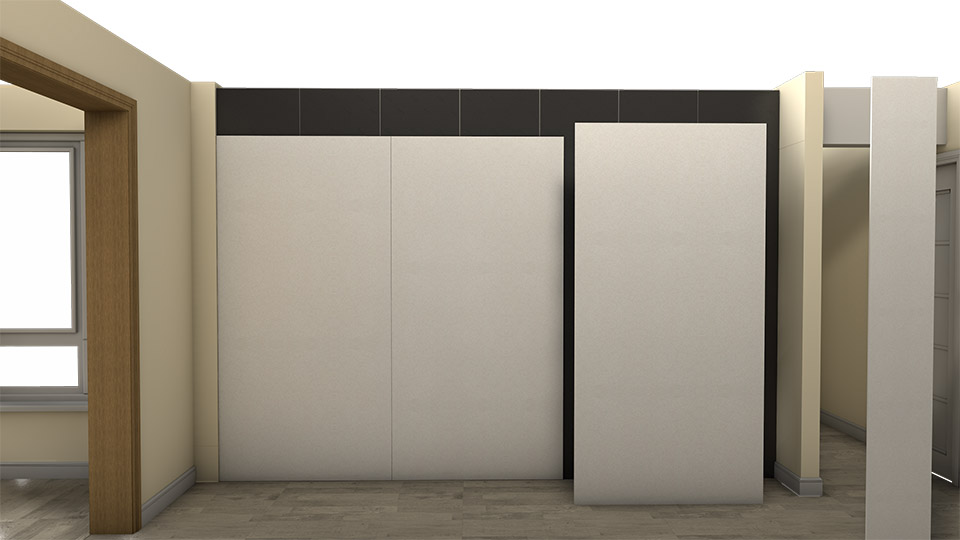

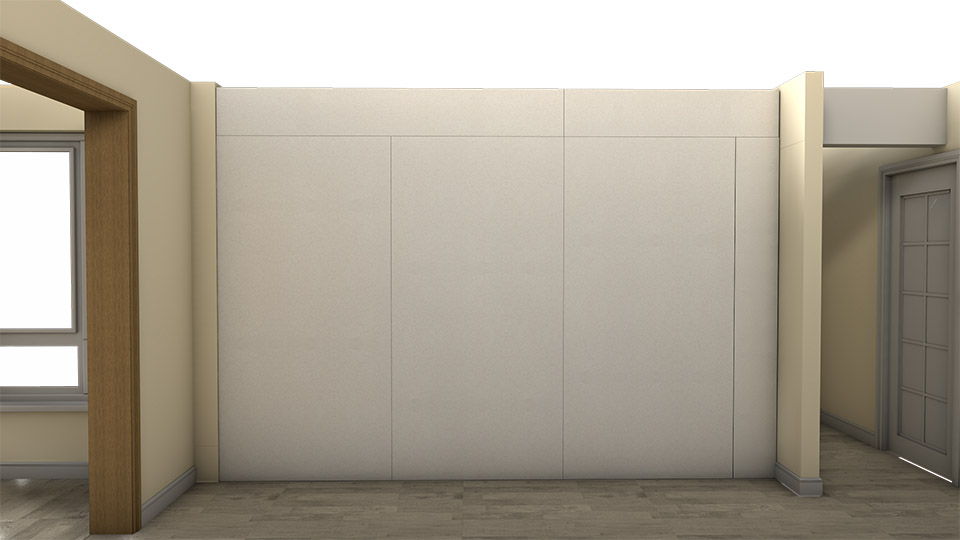

Aluminium Wall Structure, supported by standard steel keel system, will be less than 100kg/m² gypsum board as the surface board, an effective sandwich structure is easily completed. Sound-absorbing Wool filling the cavity; Staggered installation of the calcium silicate boards and the gypsum boards;
Sealing the gaps properly with G600 Sound Insulation Glue.
Product Information

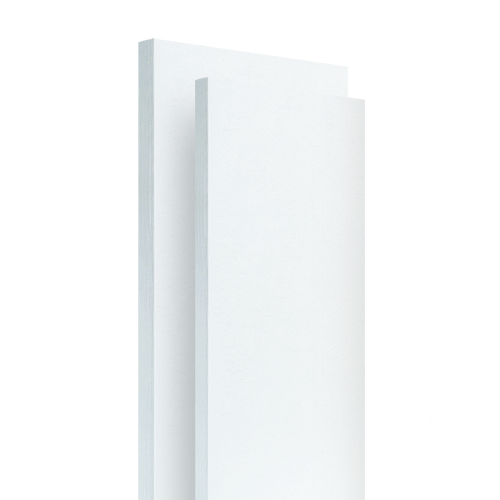

Product name:
White acoustic wool
Model:
ME48-50
Specification:
H1200 x W600 x D50mm
Weight:
48kg/m³
The sound absorbing wool is currently recognized as the most superior material in this application, and it is widely used for thermal insulation, sound absorption, and noise reduction. It has the advantages of being fireproof and moisture-proof, non-toxic, durable and chemically stable, low unit weight and low heat conductivity.
Product name:
High polymer sound insulation felt
Model:
F10 / F20 / F30
Specification:
F10 – W610 x L12000 x T1.0mm
F20 – W610 x L6000 x T2.0mm
F30 – W610 x L4000 x T3.0mm
Weight:
18kg/roll
High Polymer sound insulation felt is a high performance and high-quality polymer sound insulation felt with excellent transmission loss. It is made of environmental protection materials and renewable polymer containing no halogen, It does not contain formaldehyde, benzene, asbestos, radioactive substances and other constituents harmful to the human body and does not contain substances depleting ozone, thereby fully meeting the international volatile organic compound emission standards.
Product name:
Acoustic damping sealing glue
Model:
G600
Specification:
300 x Φ50mm
Weight:
600ml
The formula characteristics are effectively used for sealing the joints of the inorganic material boards and fixing the material, rubber and other materials with the vibration damping adhesive. There is no corrosion to the organic and inorganic materials, metal and rubber. The aging resistance is excellent, the adhesive property is good for multiple base materials, the moisture resistance and the high-low temperature adaptability are strong (use in the temperature range of -20°C to 100°C), and the performance is steady and reliable.
