Step 1
Noise from Exhaust Fan
Ventilator is vital for air circulation, especially for toilets. However, traditional ventilators are noisy. Soundbox Silence Ventilator is designed to solve this problem.
Installation Method
Step 2

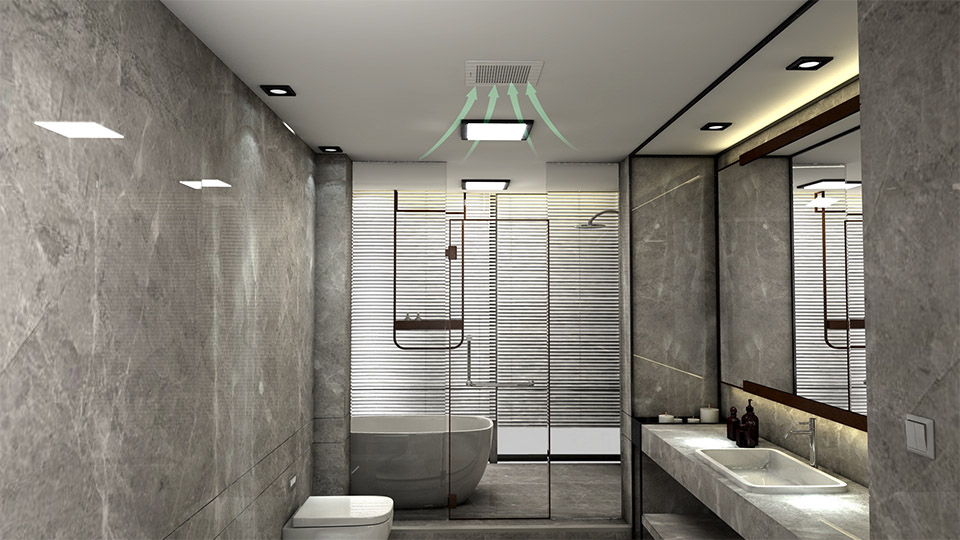

When installing Ceiling Ventilator, the angle of duct should be more than 135º, and the length should be less than 3 meter.
Not meeting these requirements will result in reduction of air circulation and increase of noise level.
Installation details refer to corresponding model in the instructions.
Product Information

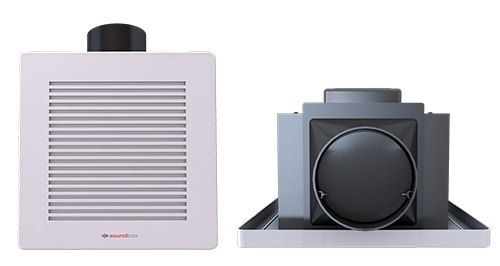

Product name:
Ceiling type silent ventilator
Model:
P230X
SPL:
27dB
Air circulation volume:
80m³/h
Application area:
2-4m²
Inner diameter:
Φ100mm
Net weight:
1.5kg
Installed size:
D180 x W180 x H170mm
Surface size:
D230 x W230 x H18mm
Rated power:
12W
Power adapt:
220V/50Hz
Product name:
Wall type silent ventilator
Model:
P200Z
SPL:
32dB
Air circulation volume:
160m³/h
Application area:
3-5m²
Net weight:
1.0kg
Installed size:
Φ160mm
Surface size:
D200 x W200 x H57mm
Rated power:
6W
Power adapt:
220V/50Hz
Soundbox Silent ventilator has the advantages of being low power consumption, low heat due to the super mute motor (>8000 hours of life span), low hydraulic resistance fan, and ABS as main structure to reduce resonance.
