Model No.:
T50 / T100 / T150
Fire protection performance:
Grade A
Environmental protection:
Formaldehyde emission ≤0.4mg/L, meeting requirement in Indoor Decorating and Refurbishing Materials-Limit of Formaldehyde Emission of Wood-based Panels and Finishing Products (GB18580-2001); emission of fibreglass particles within 24 hours 0mg/m³, better than the national E1 standard requirement, i.e. 0.15 mg/m³ standard limit.
Application:

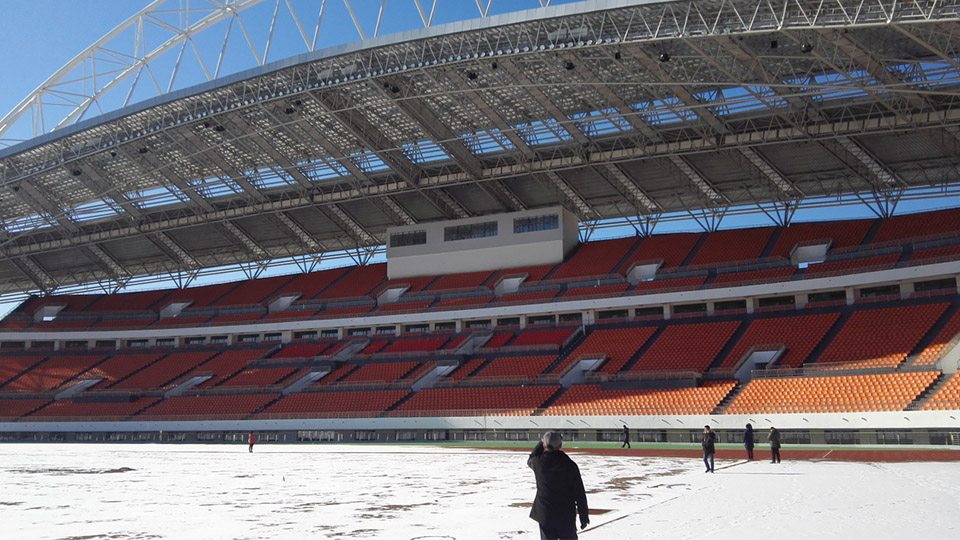

Areas with large space, e.g. stadiums, club and multi-functional halls to control the reverberation time.
Consumption:
Refer to acoustic design
Non-inflammable acoustic fiberglass cloth:
Beige
Black
Weight:
T50 – 5.5kg/m²
T100 – 11.5kg/m²
T150 – 13.5kg/m²
Common Size：
T50 – 1200mm (L) x 600mm (W) x 50mm (T)
T100 – 1200mm (L) x 600mm (W) x 100mm (T)
T150 – 1200mm (L) x 600mm (W) x 150mm (T) or
≤W600 x L4000 x T50/100/150mm
Installation method:
Horizontal or vertical

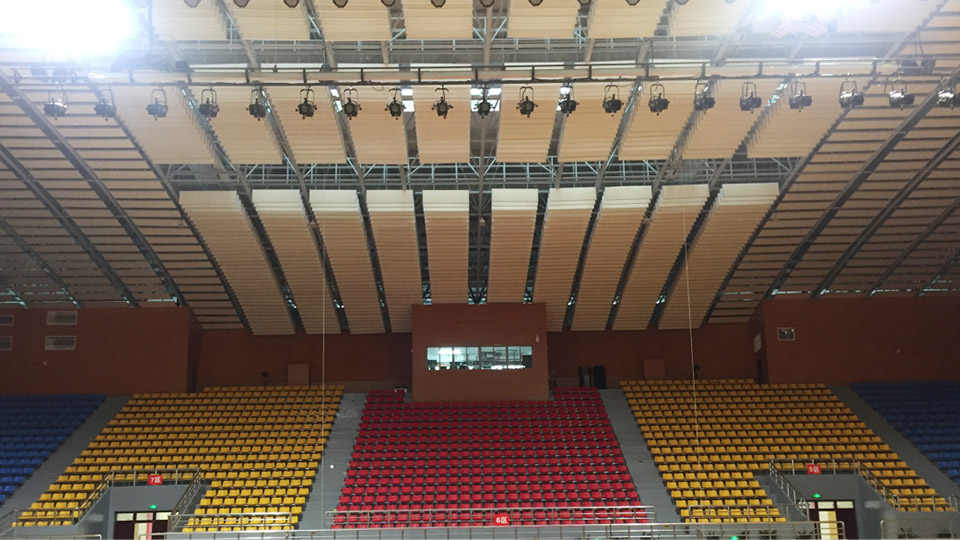

Vertical installation method
Structure:
Surrounding aluminium alloy frame inside, Owens Corning sound absorption wool and Space Shuttle are optional. And sound absorption fibreglass felt flame-retardant/non-inflammable sound absorption fabric is wrapped.
Absorption Coefficient：
Model No.:
T50X / T100X / T150X
Fire protection performance:
Grade A
Environmental protection:
Formaldehyde emission ≤0.4mg/L, meeting requirement in Indoor Decorating and Refurbishing Materials-Limit of Formaldehyde Emission of Wood-based Panels and Finishing Products (GB18580-2001); emission of fibreglass particles within 24 hours 1.7mg/m³, better than the national E1 standard requirement, i.e. 0.15 mg/m³ standard limit
Application:
Areas with large space, e.g. stadiums, club and multi-functional halls to control the reverberation time.
Consumption:
Refer to acoustic design
Non-inflammable acoustic fiberglass cloth:
White
Beige
Black
Weight:
T50X – 7kg/m²
T100X – 13kg/m²
T150X – 15kg/m²
Common Size：
T50X – 1200mm (L) x 600mm (W) x 50mm (T)
T100X – 1200mm (L) x 600mm (W) x 100mm (T)
T150X – 1200mm (L) x 600mm (W) x 150mm (T) or
≤W600 x L4000 x T50/100/150mm
Installation method:
Horizontal or vertical

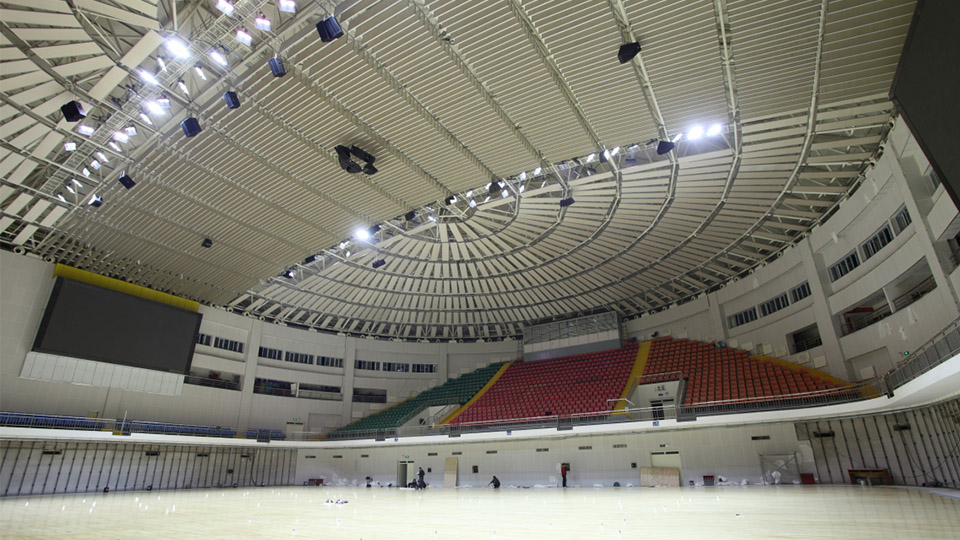

Horizontal installation method
Structure:
Surrounding aluminium alloy frame inside, Owens Corning sound absorption wool and Space Shuttle are optional. And sound absorption fibreglass felt flame-retardant/non-inflammable sound absorption fabric is wrapped. Blow out proof protective aliminium mesh.
Absorption Coefficient：
Model No.:
CT30 / 60 / 120
Fire protection performance:
Grade A
Environmental protection:
Formaldehyde emission ≤0.4mg/L, meeting requirement in Indoor Decorating and Refurbishing Materials-Limit of Formaldehyde Emission of Wood-based Panels and Finishing Products (GB18580-2001); emission of fibreglass particles within 24 hours 1.2mg/m³, better than the national E1 standard requirement, i.e. 0.15 mg/m³ standard limit
Application:
Areas with large space, e.g. stadiums, club and multi-functional halls to control the reverberation time.
Consumption:
Refer to acoustic design
Non-inflammable acoustic fiberglass cloth:
White
Beige
Black
Weight:
CT30 – 4kg/m²
CT60 – 7kg/m²
CT120 – 12.5kg/m²
Common Size：
CT30 – 1200mm (L) x 600mm (W) x 30mm (T)
CT60 – 1200mm (L) x 600mm (W) x 60mm (T)
CT120 – 1200mm (L) x 600mm (W) x 120mm (T) or
≤W600 x L4000 x T30/60/120mm
Installation method:
Horizontal or vertical
45° suspension installation
Structure:
Surrounding aluminium alloy frame, Owens Corning sound absorption wool and Space Shuttle are optional. And sound absorption fibreglass felt flame-retardant/non-inflammable sound absorption fabric is wrapped.
Absorption Coefficient：
